FRAME

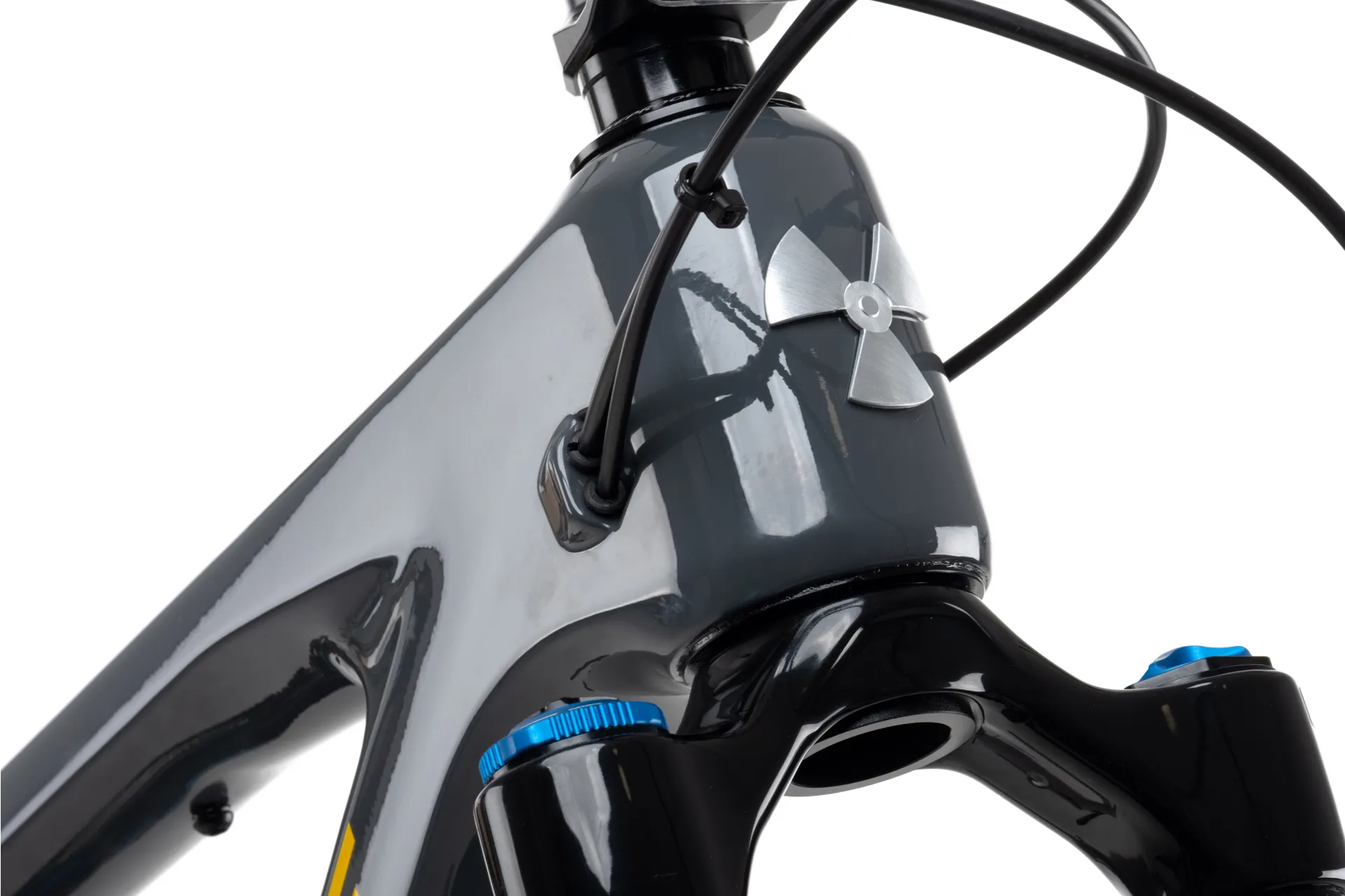

Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.

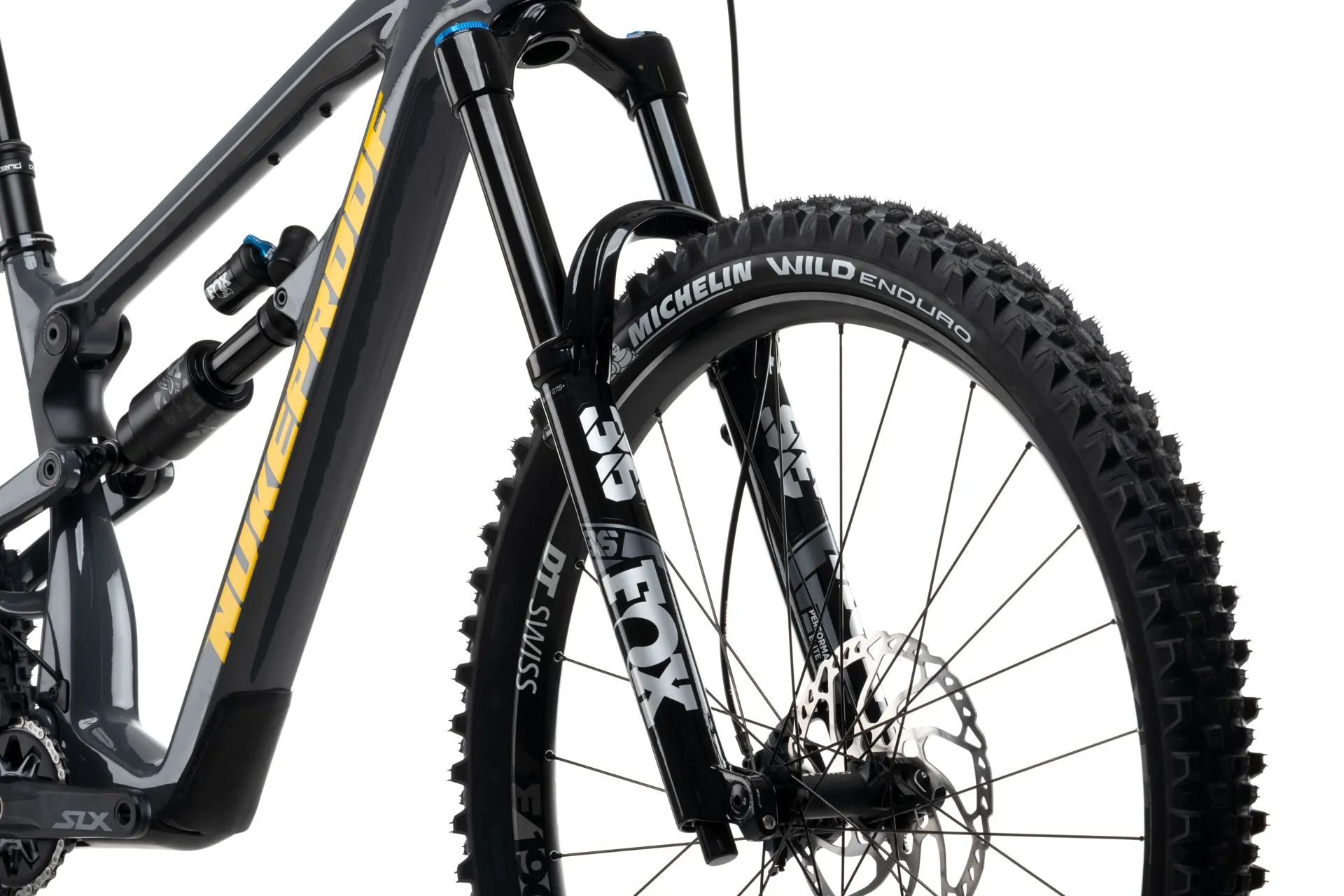

FORK
Fox 36 Float, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Black (SHORT ID: D6F9)

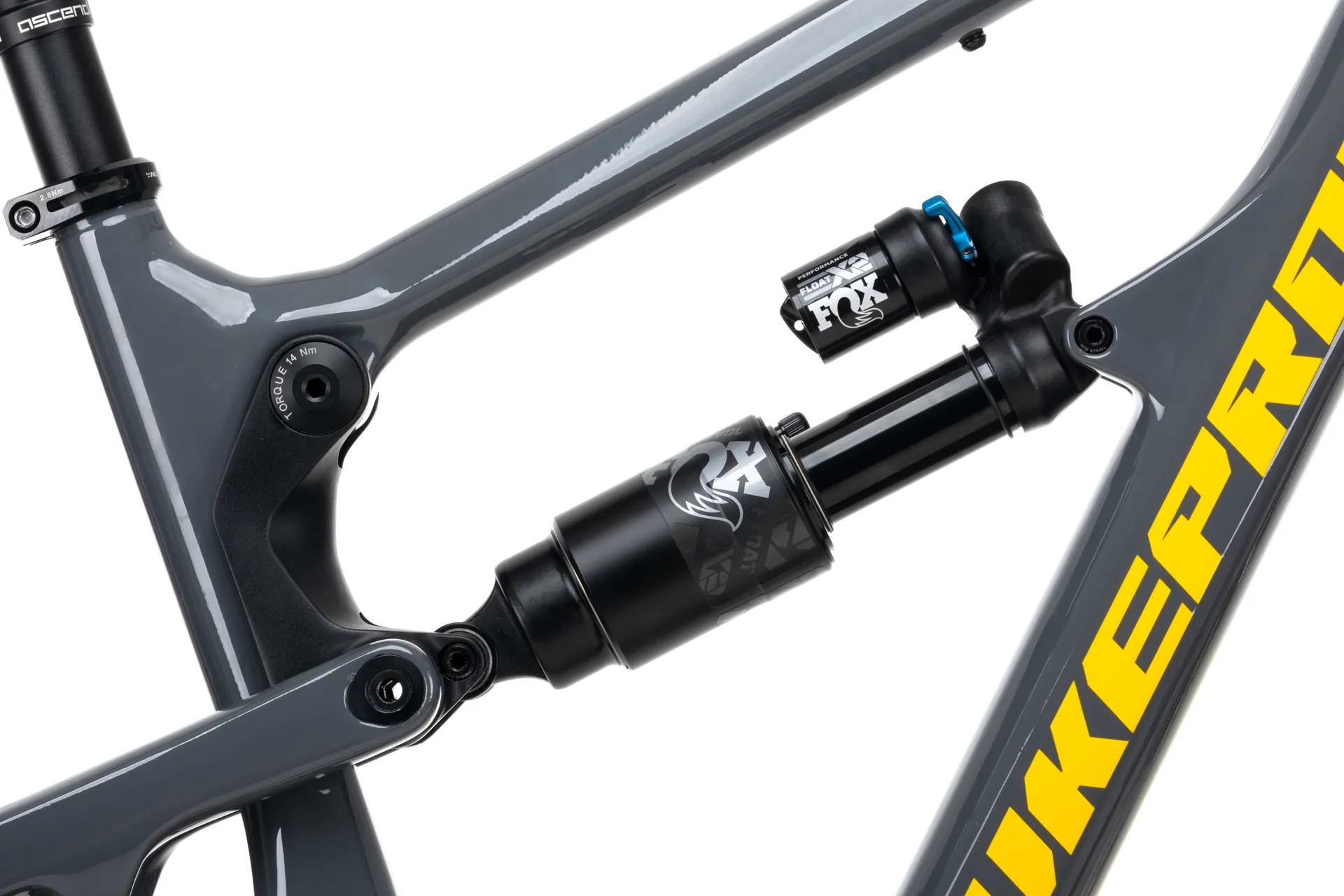

SHOCK
Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted. (SHORT ID: D7JH)
FRONT WHEEL
DT Swiss E1900 SPLINE 29", 6 Bolt, 110x15mm
REAR WHEEL
DT Swiss E1900 SPLINE 29", 6 Bolt, Shimano Microspline Driver, 148x12mm
TYRES
Front: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR, Rear: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR

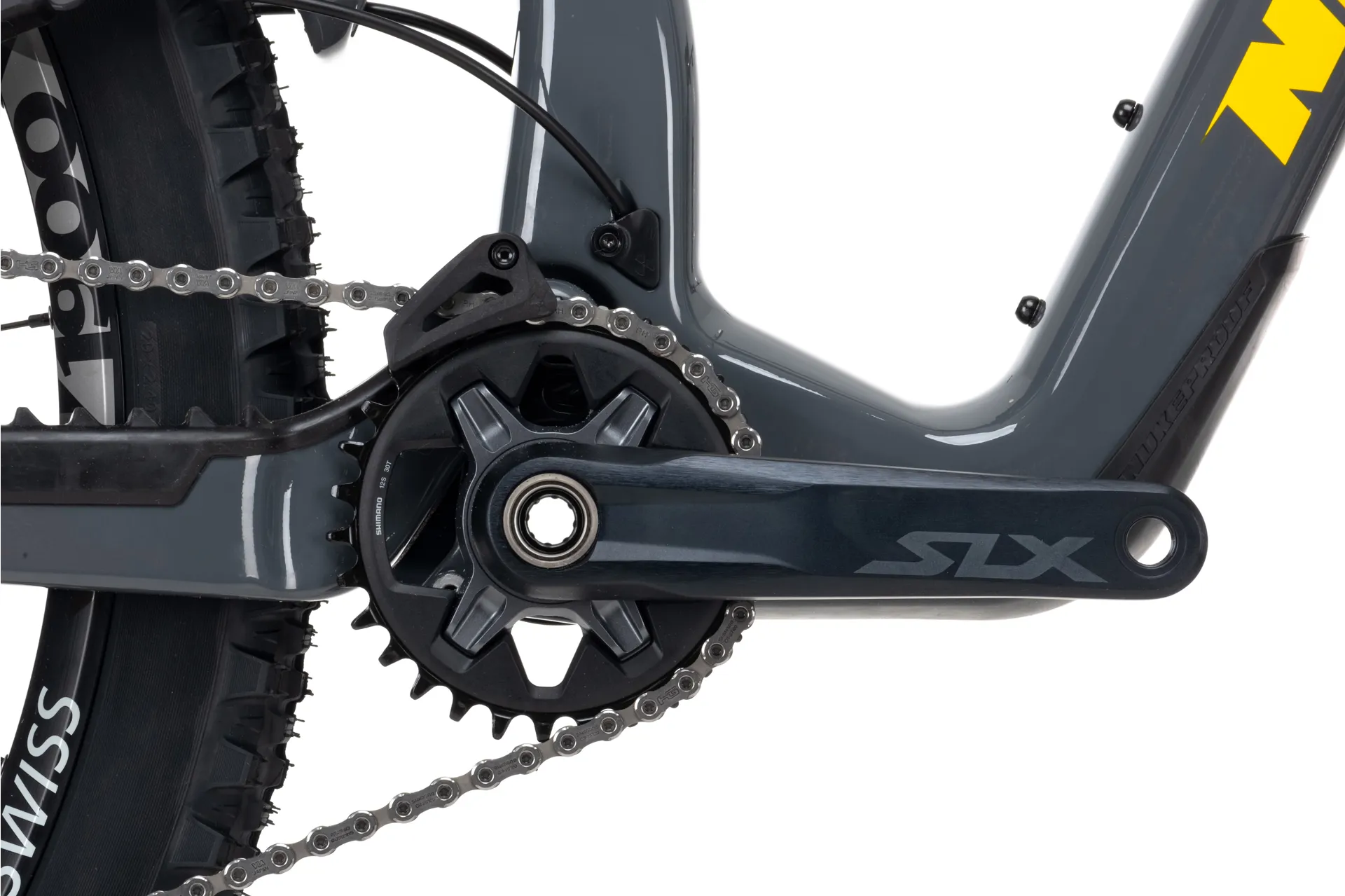

CRANKSET
Shimano SLX M7100 12-Speed, Hollowtech 2, 170mm, 30T, 52mm Chainline
SHIFTER
Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV

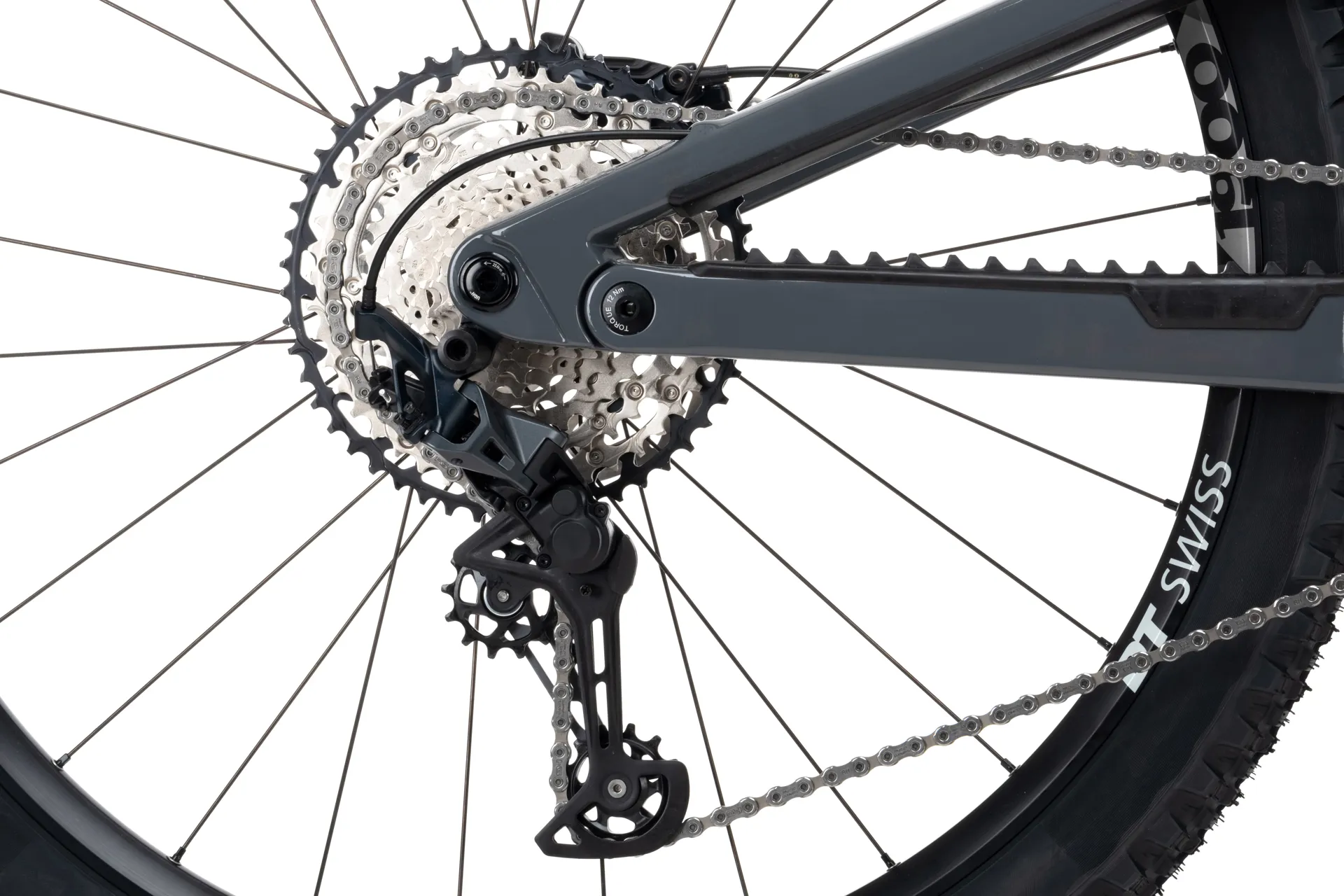

REAR DERAILEUR
Shimano SLX M7100, SGS 12-Speed, Shadow Plus
CHAIN
Shimano SLX M7100 HG 12-speed Inc Quicklink
CASSETTE
Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T
CHAIN GUIDE
Nukeproof Guide, 28-36T, ISCG-05, black

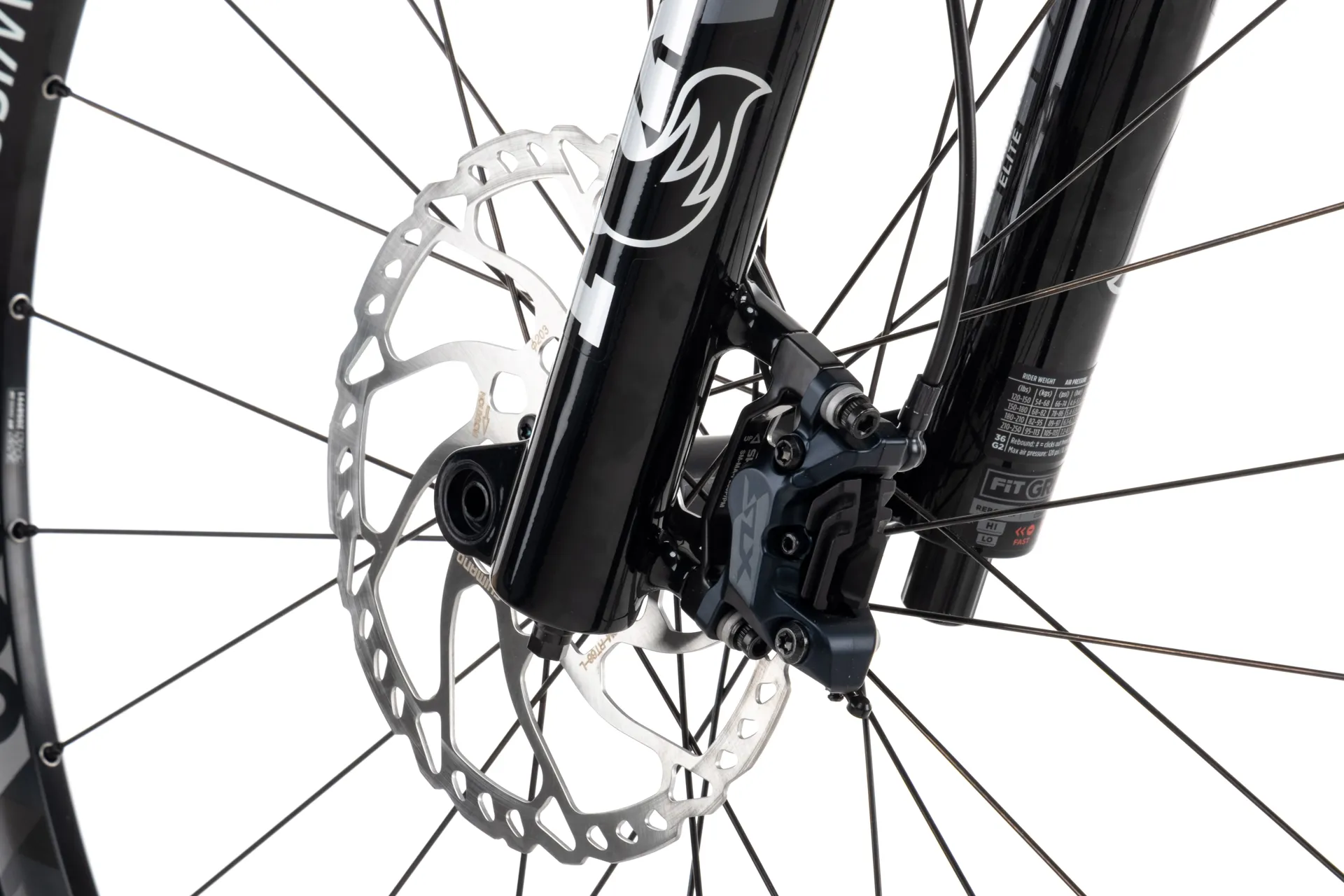

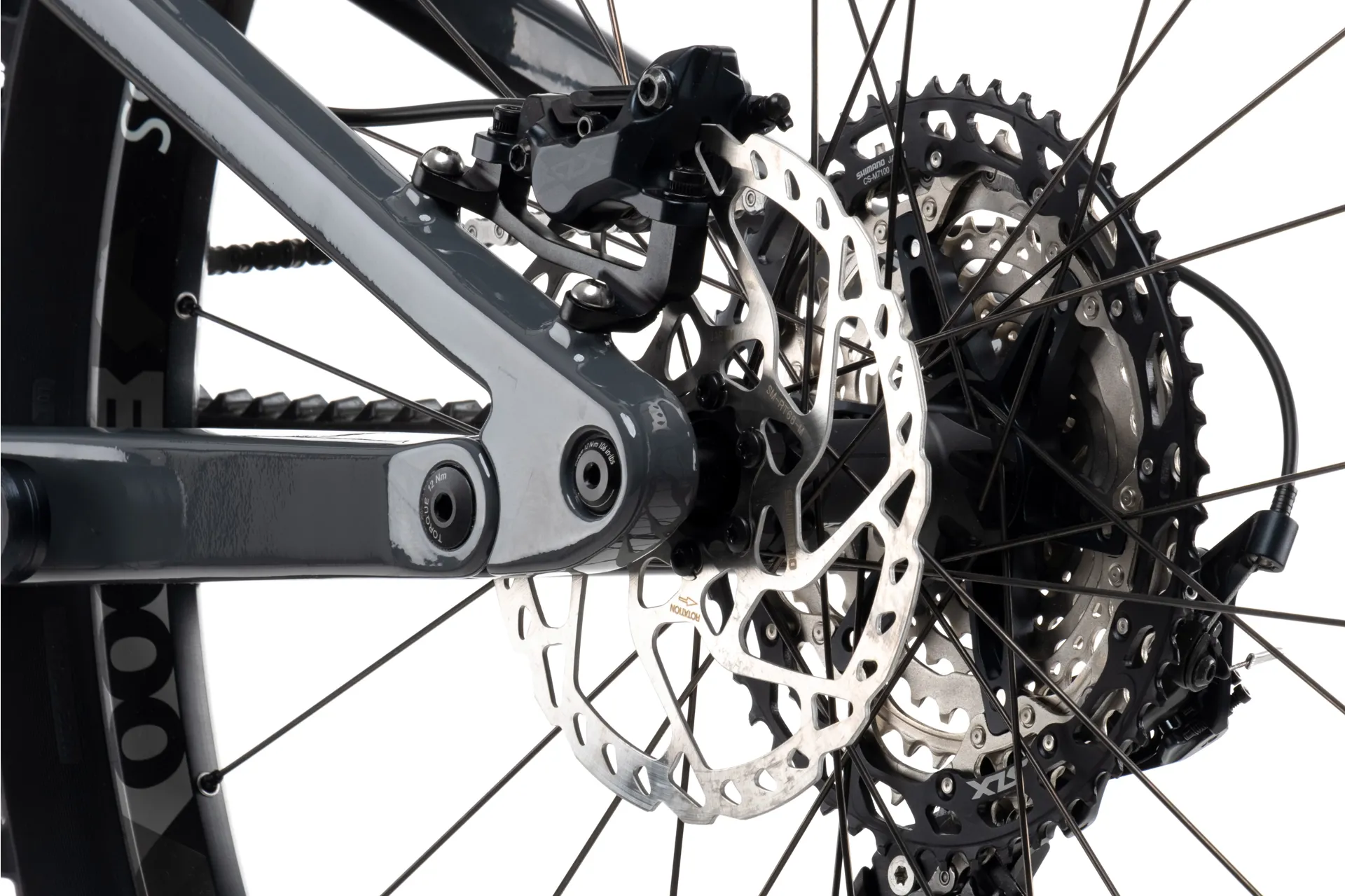

BRAKES
Shimano SLX M7120, 4 Pot Brake, Metallic Pads with Fins
FRONT ROTOR
Shimano SM-RT66, 203mm
REAR ROTOR
Shimano SM-RT66, 180mm

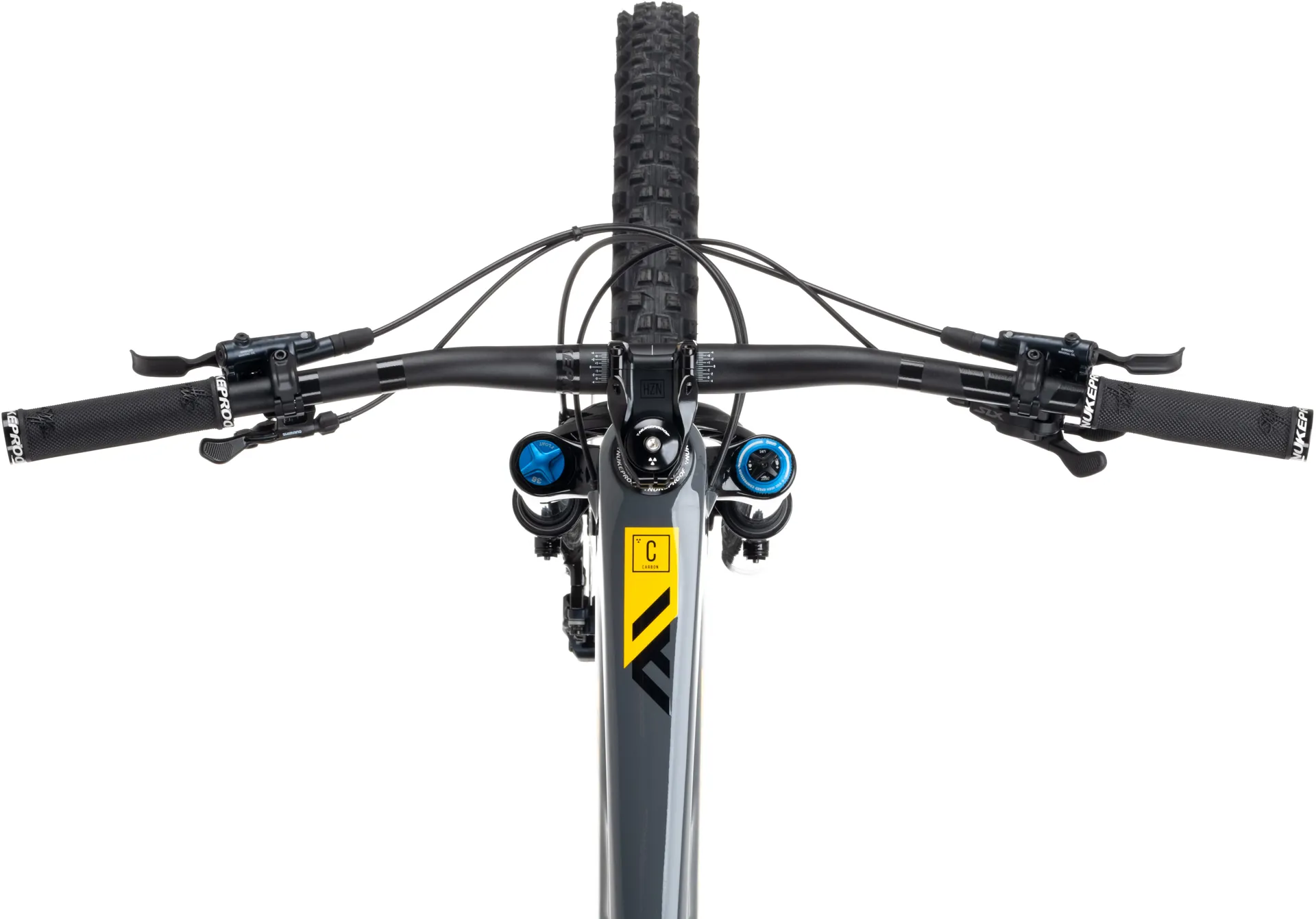

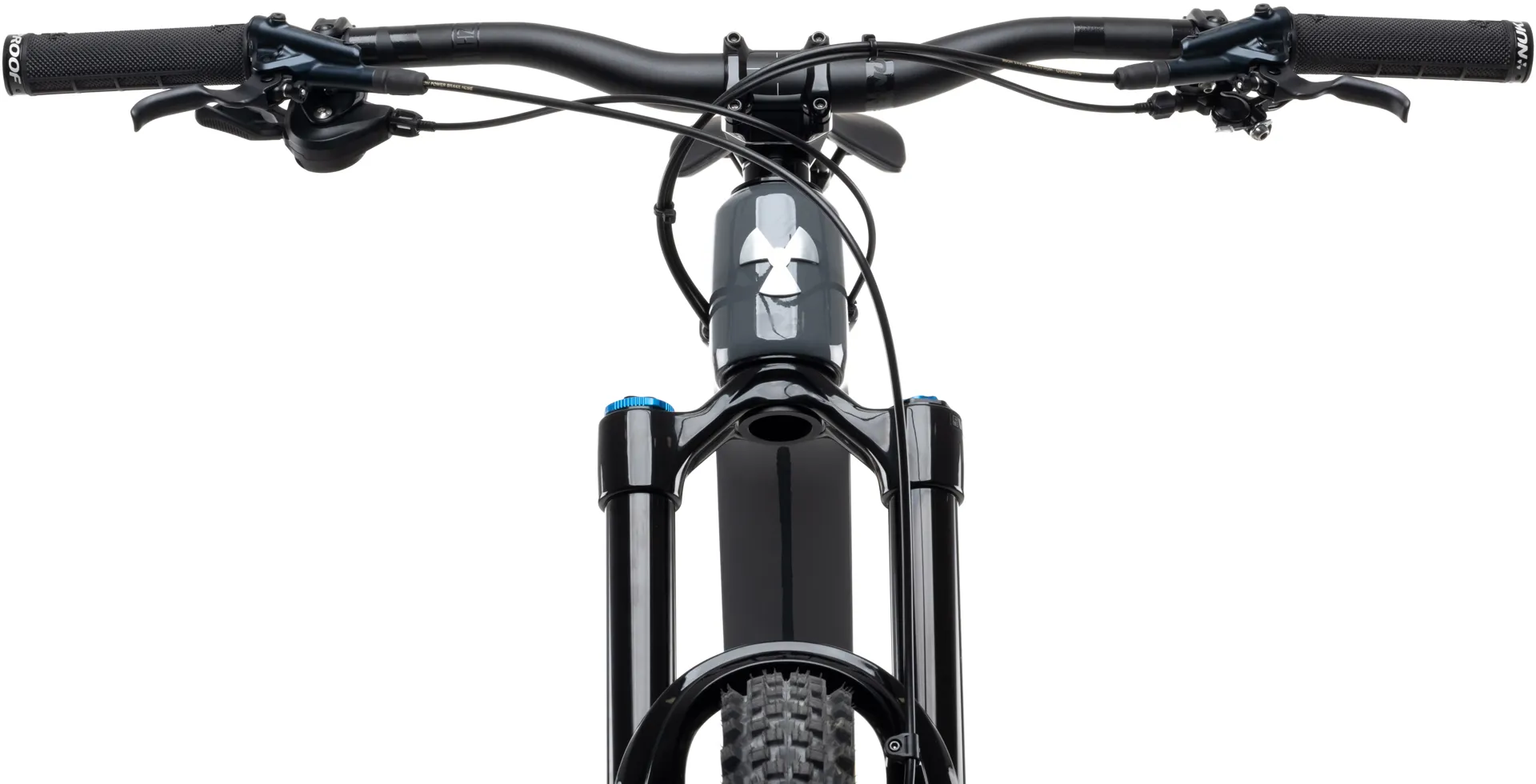

HANDLEBARS
Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm)
STEM
Nukeproof Horizon, 50mm, Black
SADDLE
Nukeproof Horizon Enduro, Black

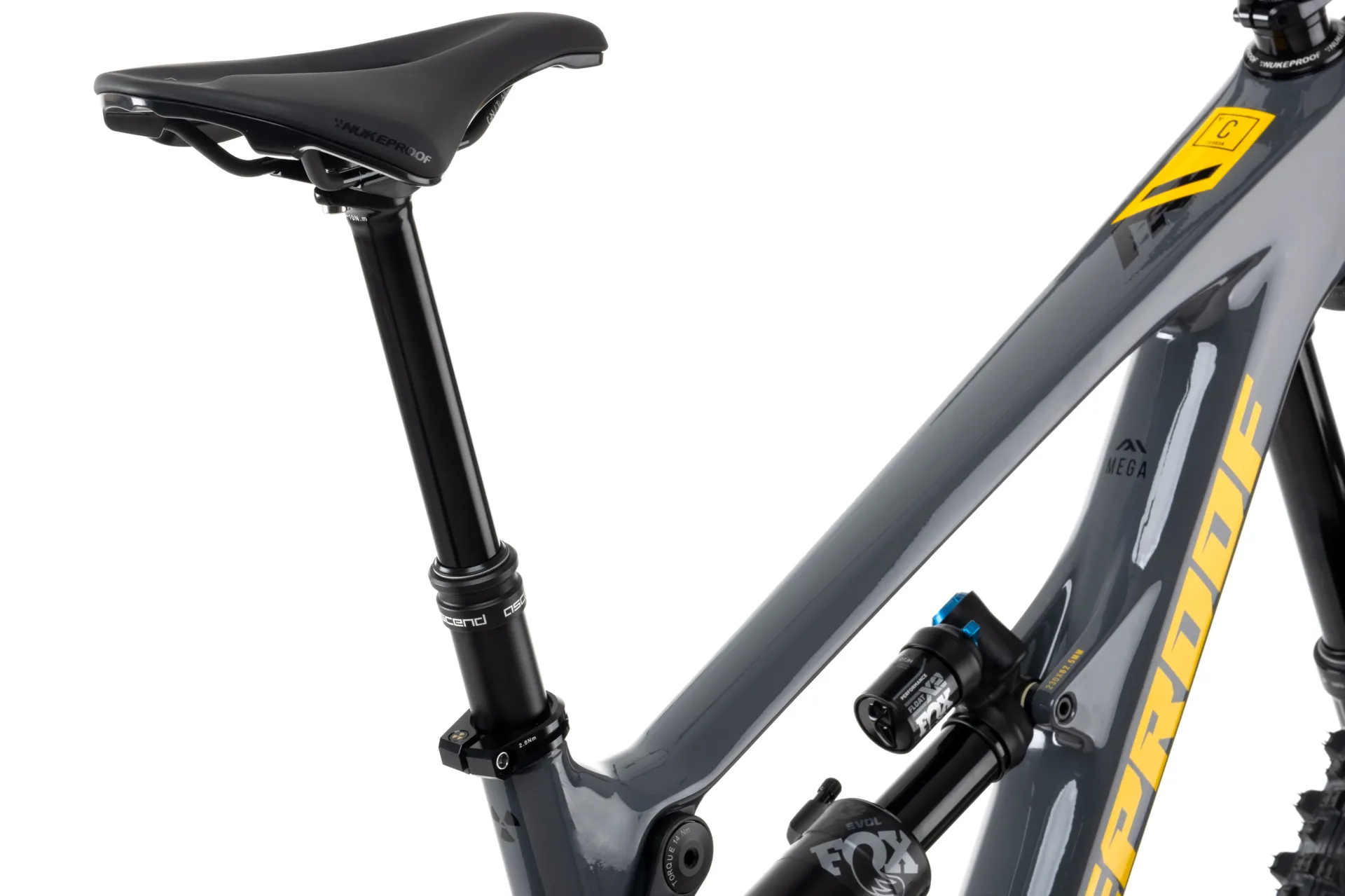

SEATPOST
Brand X Ascend internal w Shimano SL-MT500-IL Remote lever, S:125mm drop; M:150mm drop; L/XL/XXL:170mm drop
HEADSET
Nukeproof, 44-56 IITS
GRIPS
Nukeproof Sam Hill Signature
BEARINGS
Enduro Bearings
WEIGHT(SIZE MEDIUM)
14.7Kgs/32.3lbs (Tubeless)
