FRAME

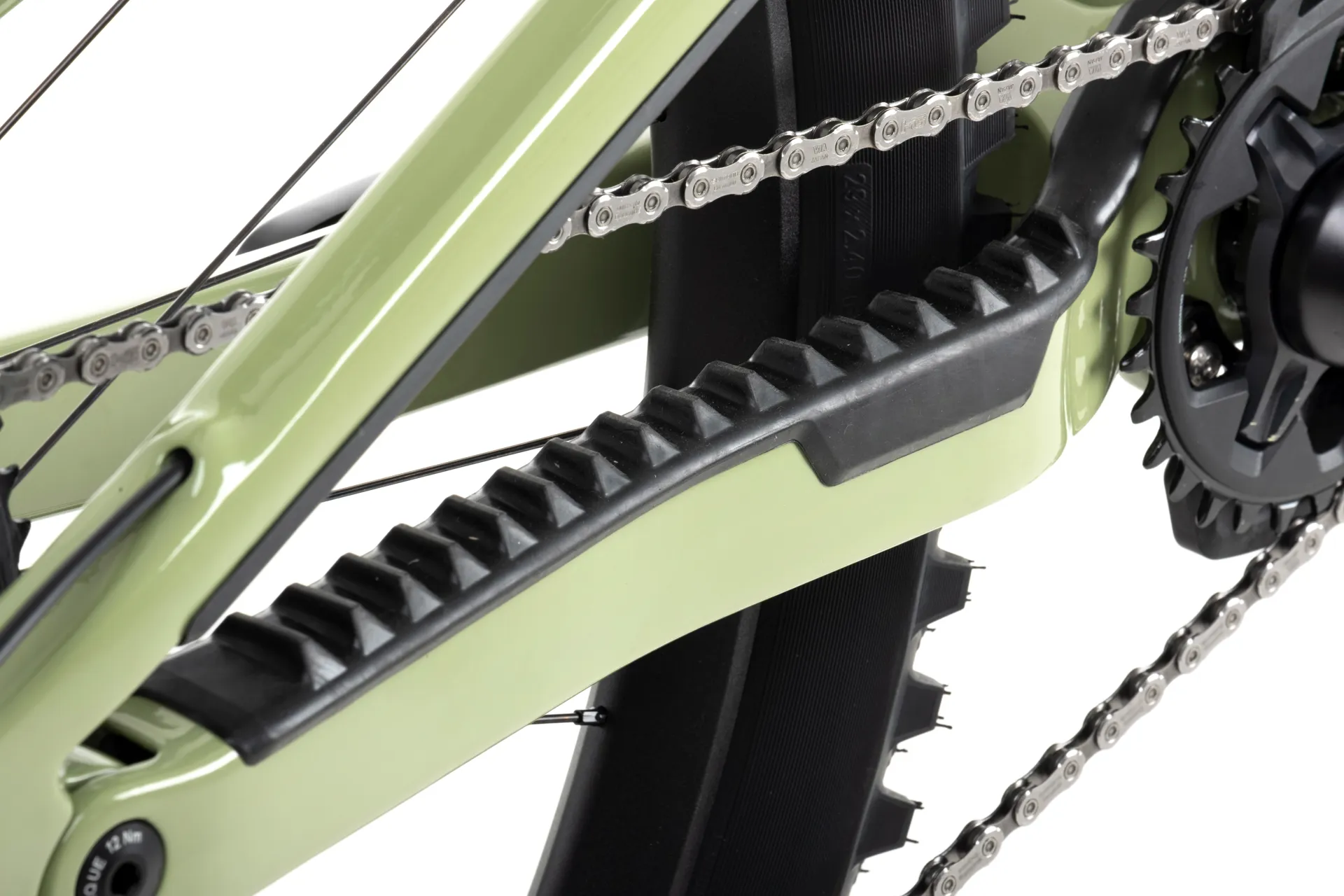

Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.

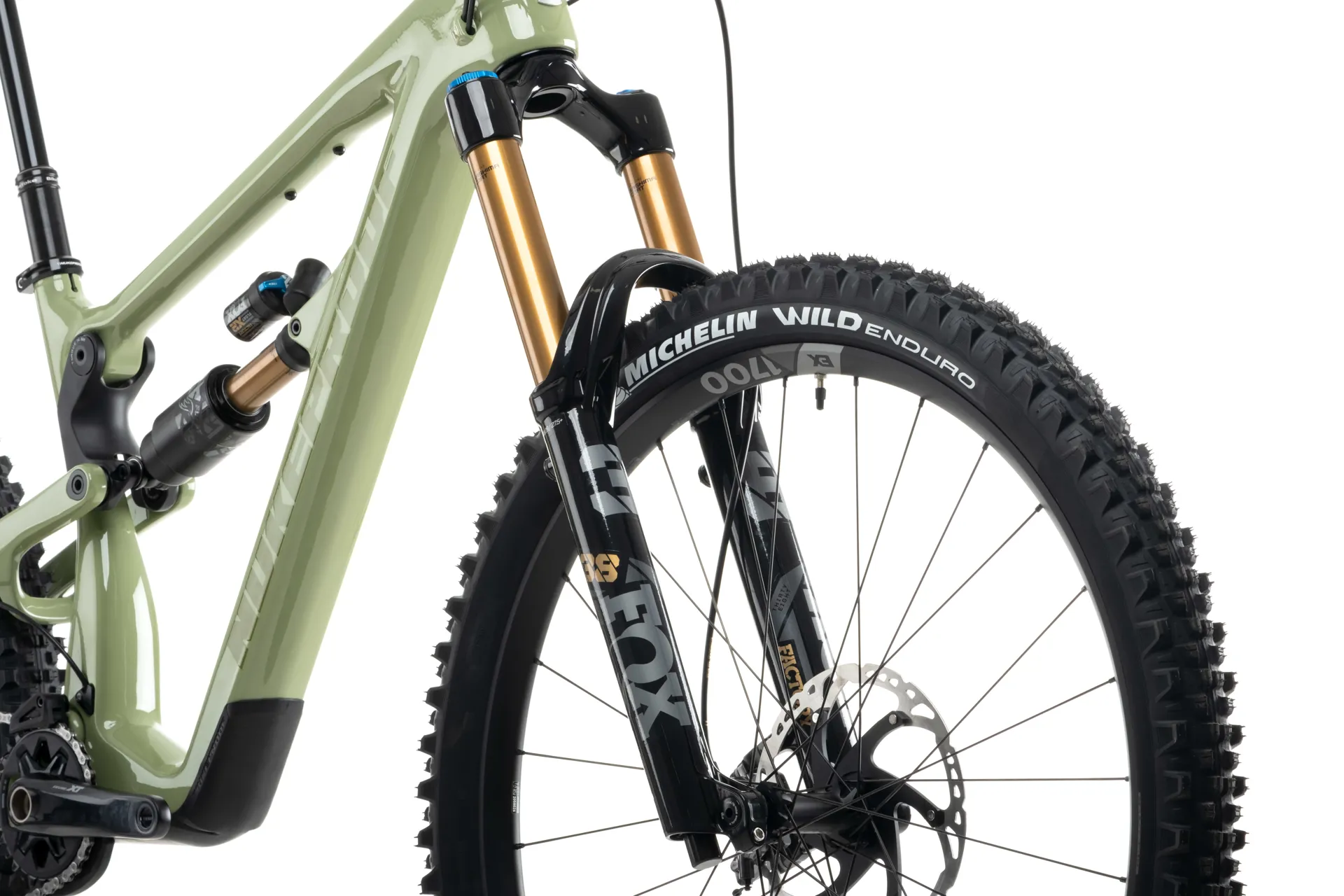

FORK
Fox 38 Float, Factory Series, Kashima, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Black (SHORT ID: D33L)

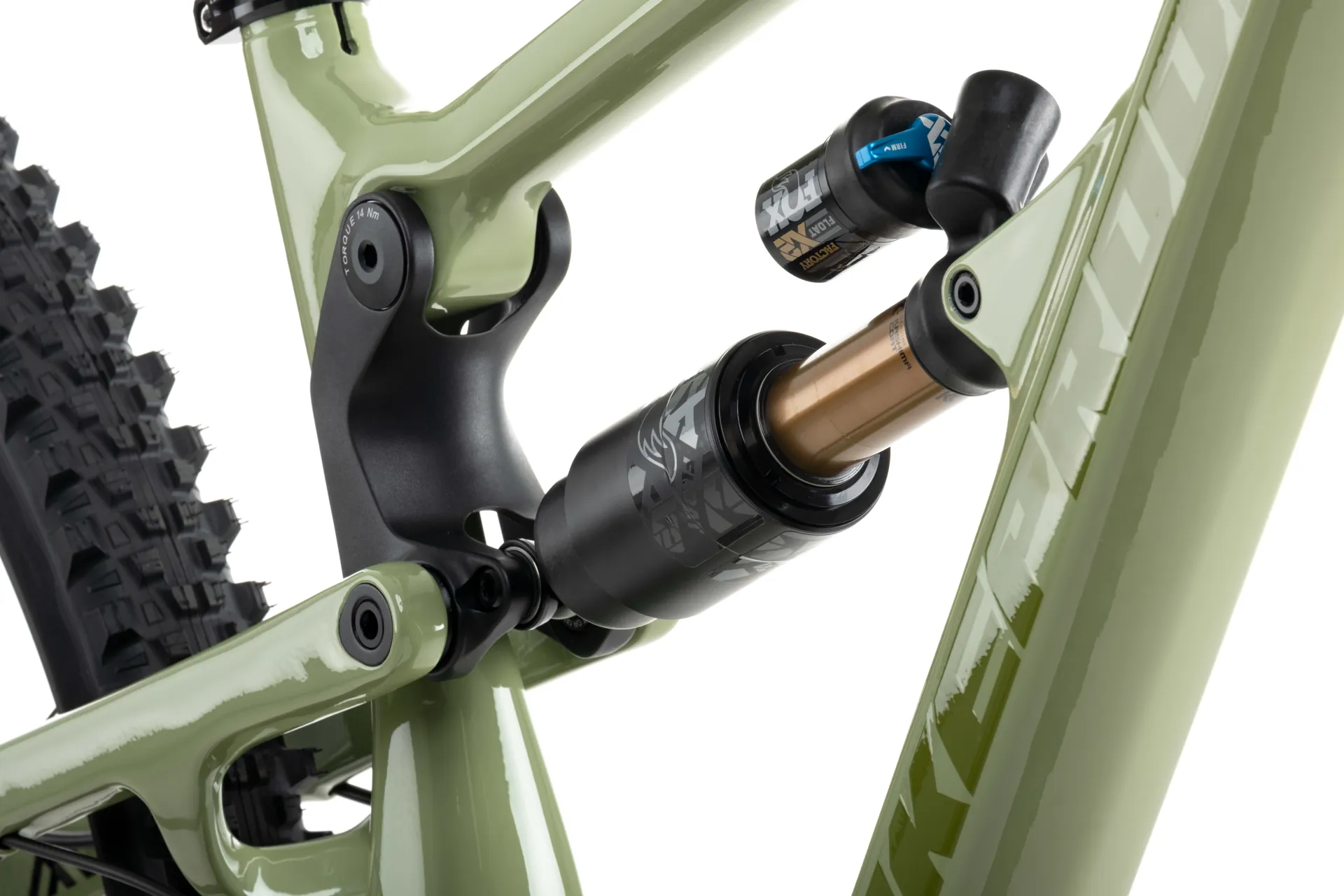

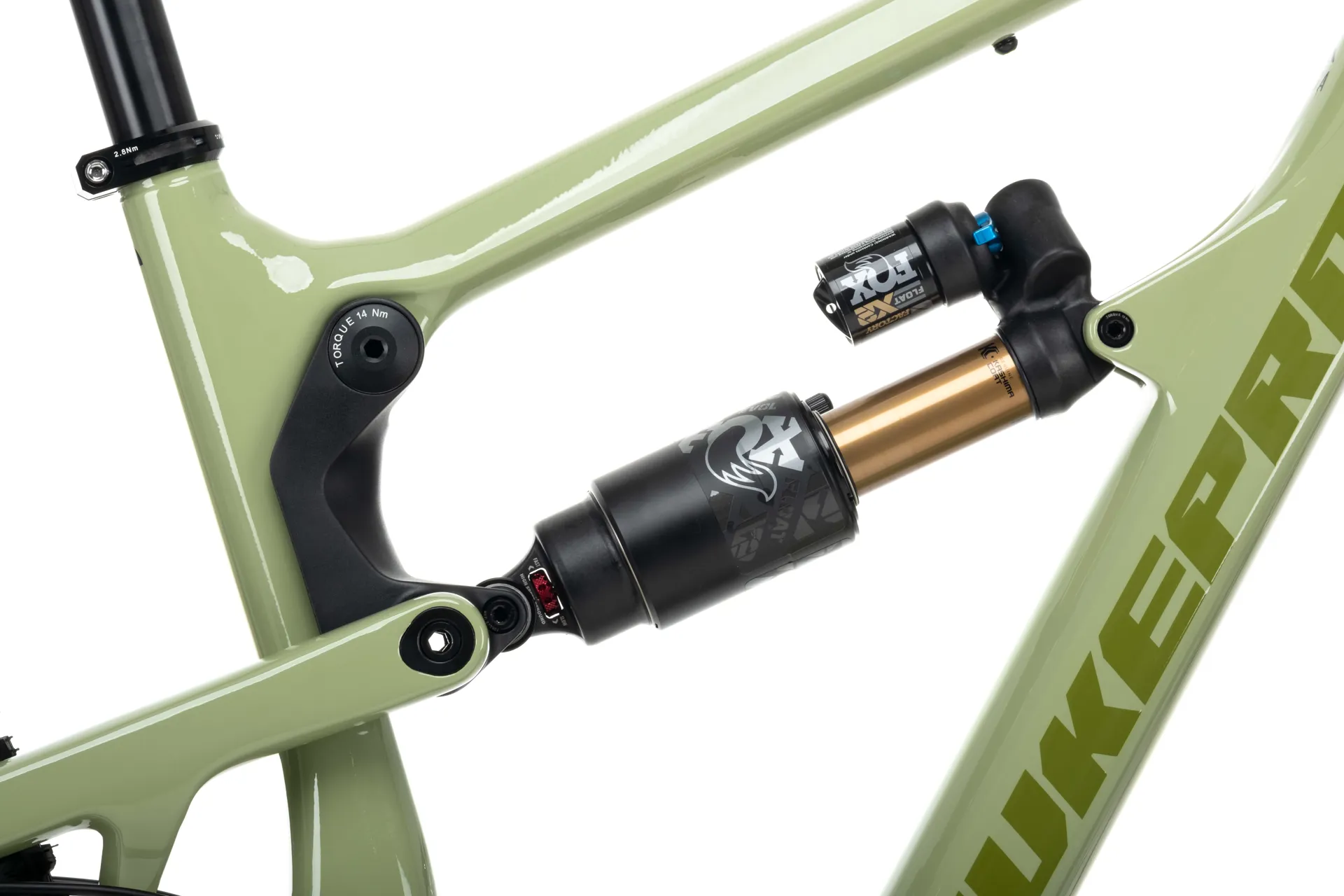

SHOCK
Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted. (SHORT ID: D7JJ)
FRONT WHEEL
DT Swiss EX1700 SPLINE 30,29", 6 Bolt, 110x15mm
REAR WHEEL
DT Swiss EX1700 SPLINE 30, 29", 6 Bolt, Shimano Microspline Driver, 148x12mm
TYRES
Front: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR, Rear: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR

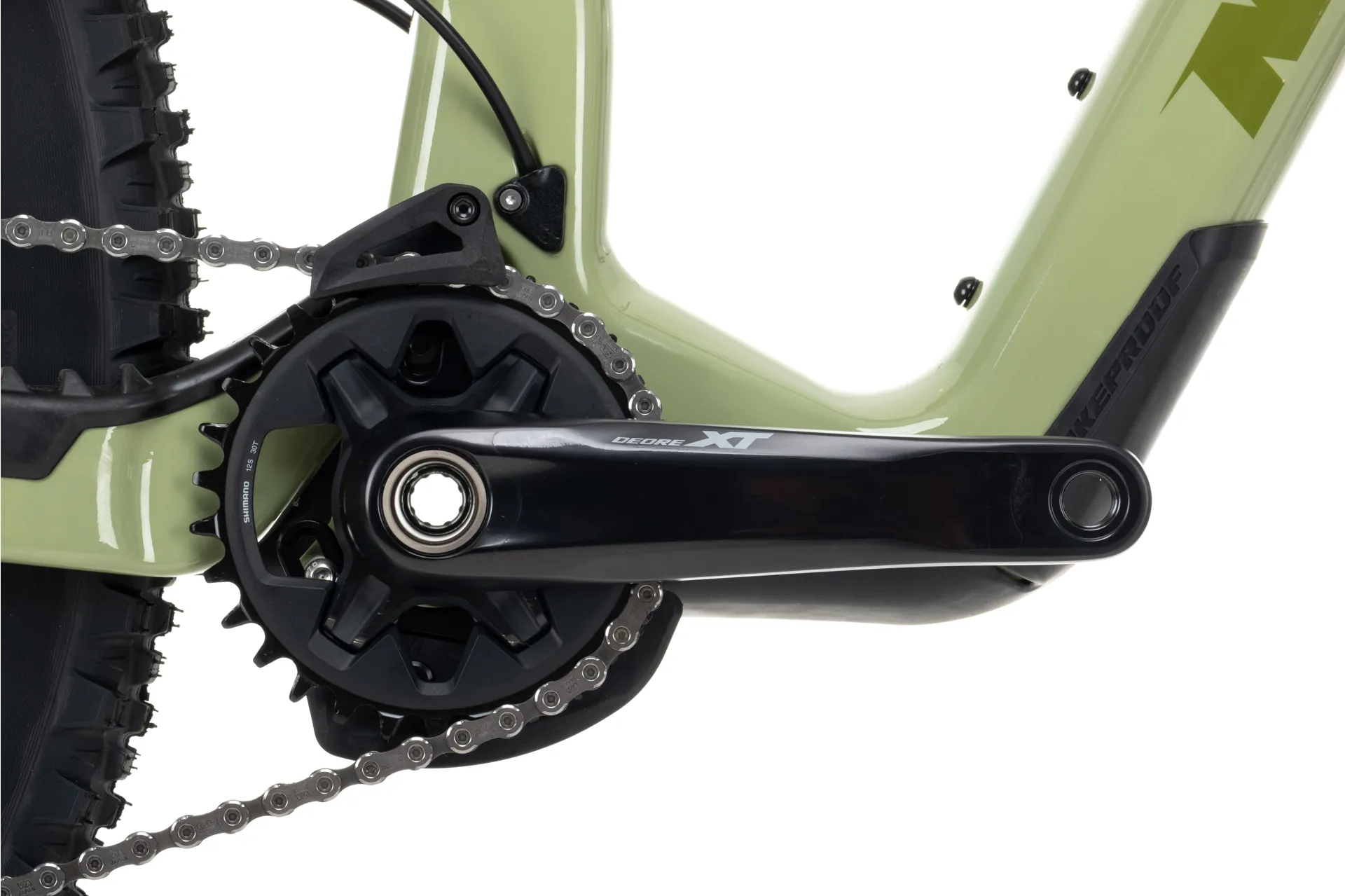

CRANKSET
Shimano XT M8100 12-Speed, Hollowtech 2, 170mm, 32T, 52mm Chainline
SHIFTER
Shimano XT M8100-R, 12-speed Rapidfire Plus, I-Spec EV

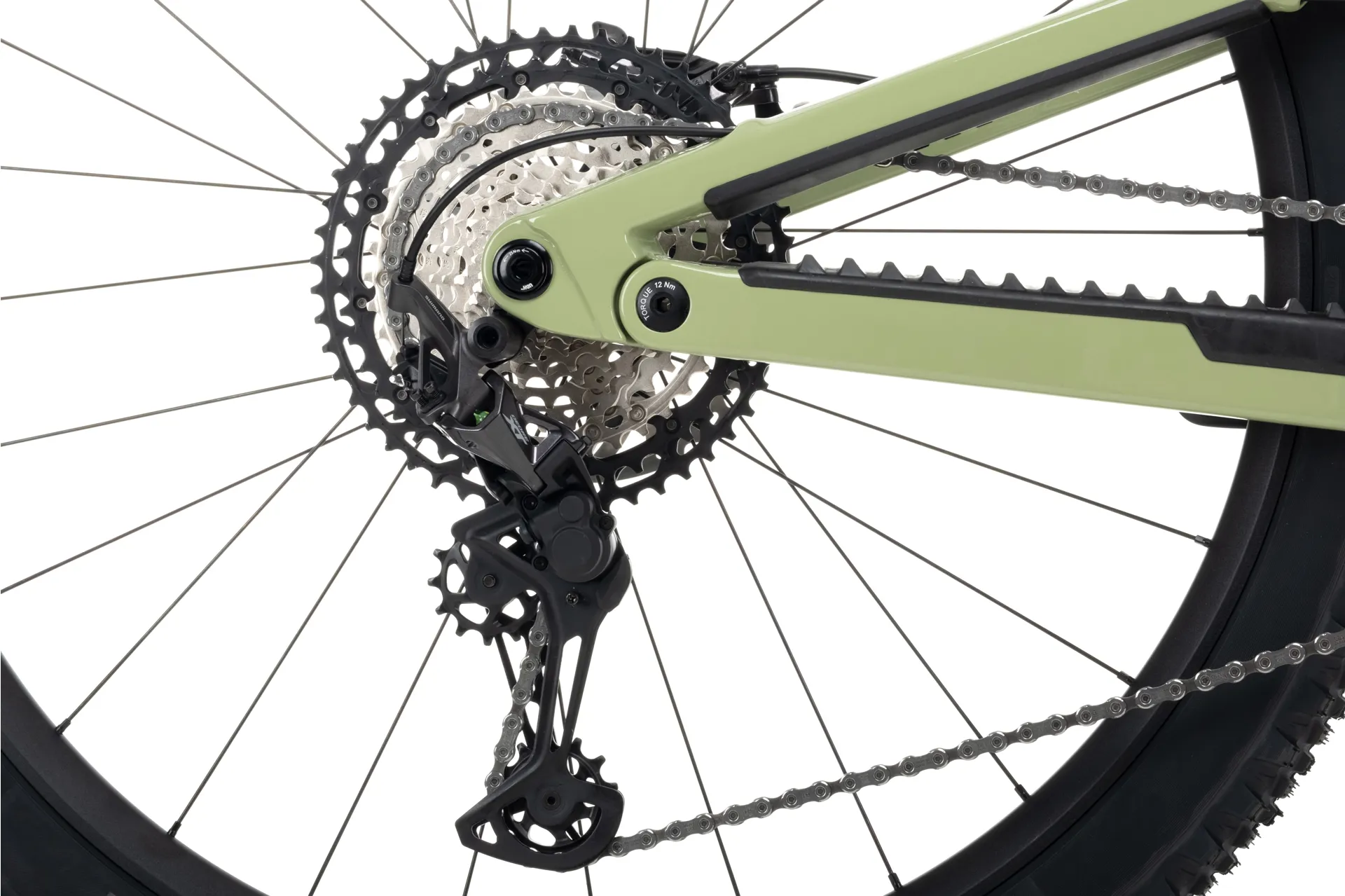

REAR DERAILEUR
Shimano XT M8100, SGS 12-Speed, Shadow Plus
CHAIN
Shimano XT M8100 HG 12-speed Inc Quicklink
CASSETTE
Shimano XT M8100-12, 12-Speed (HYPERGLIDE+), 10-51T
CHAIN GUIDE
Nukeproof Guide with Bash, 28-36T, ISCG-05, black

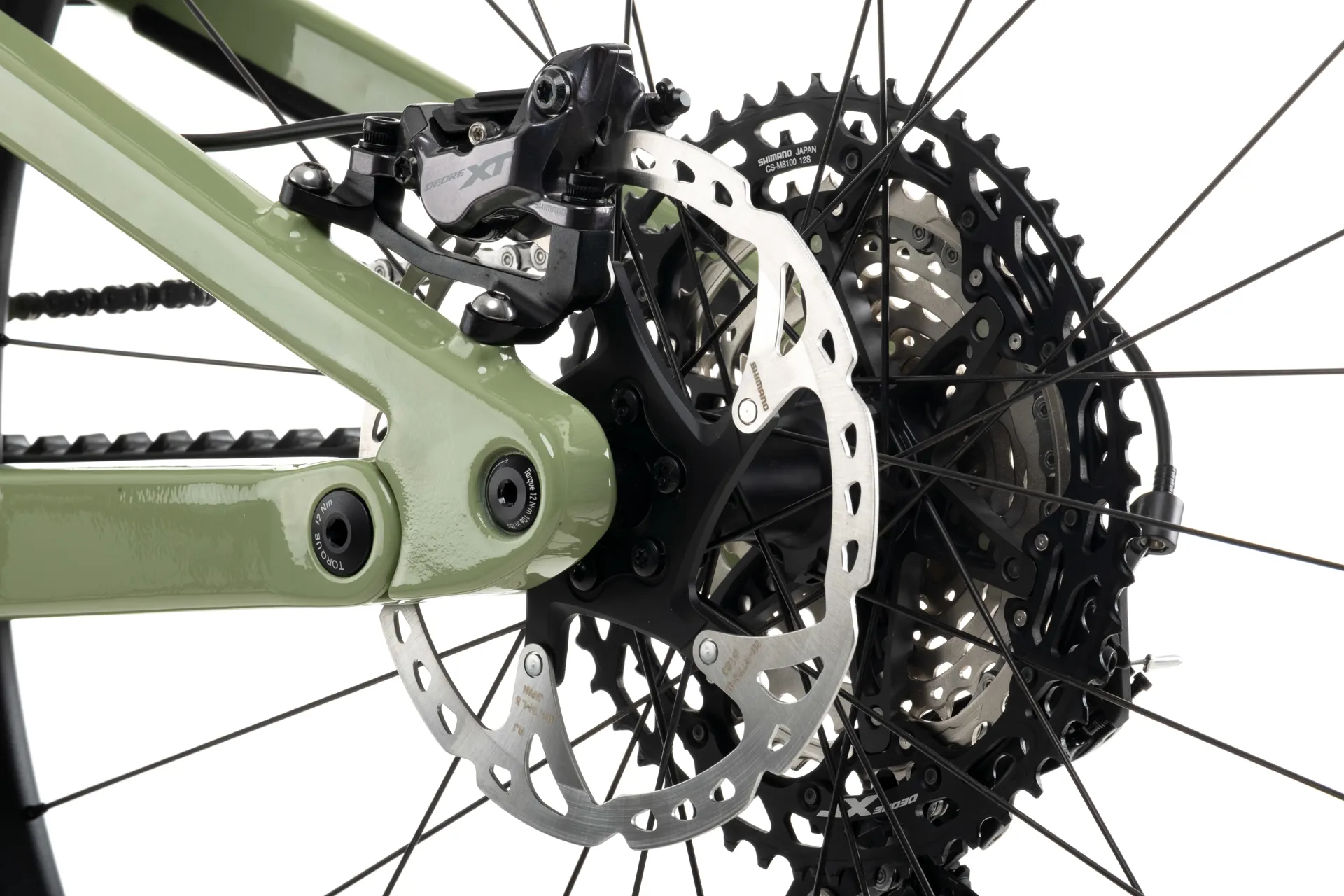

BRAKES
Shimano XT M8120, 4 Pot Brake, Metallic Pads with Fins
FRONT ROTOR
Shimano SM-RT76, 203mm
REAR ROTOR
Shimano SM-RT76, 180mm

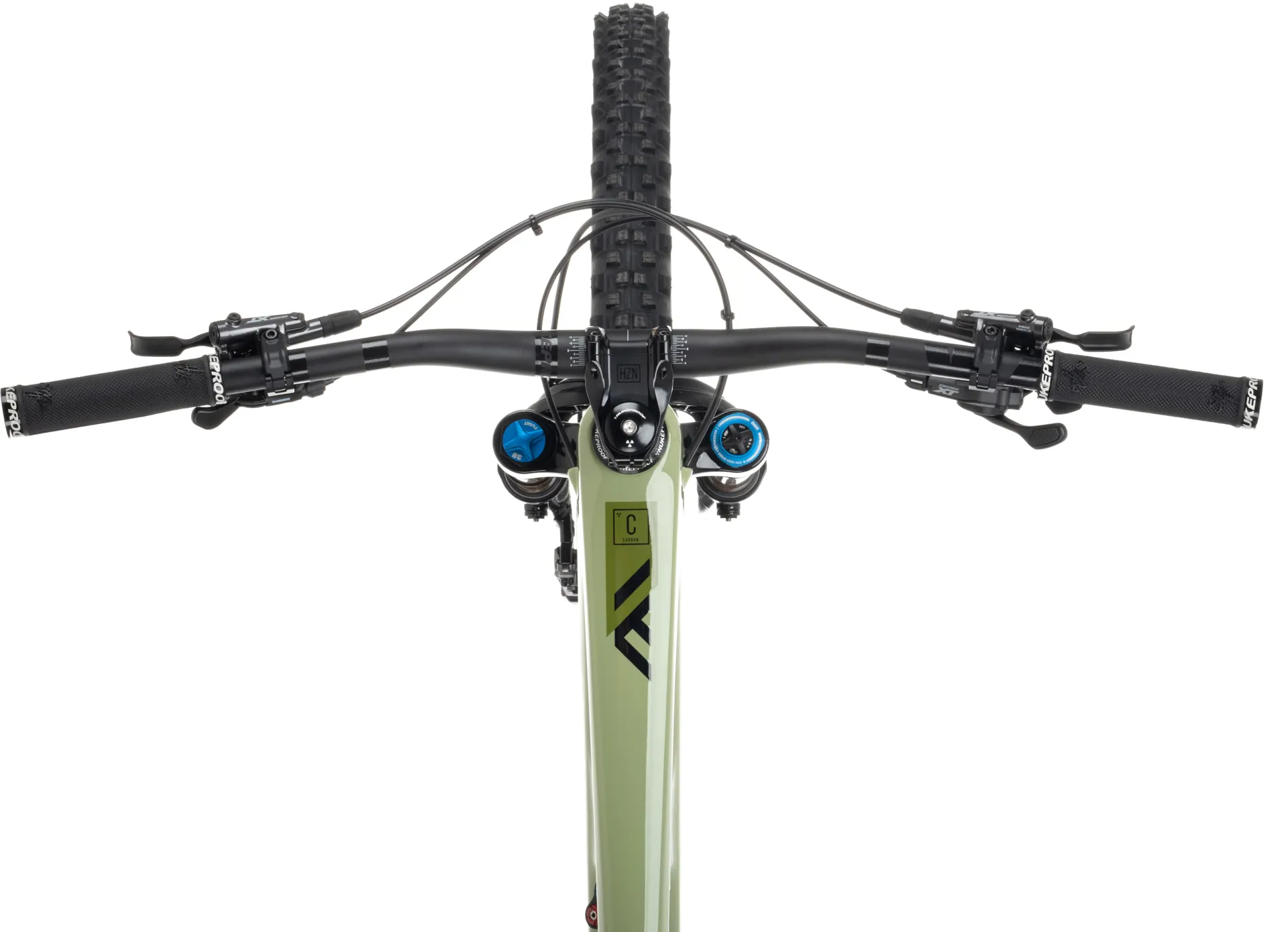

HANDLEBARS
Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm)
STEM
Nukeproof Horizon, 50mm, Black
SADDLE
Nukeproof Horizon Enduro, Black

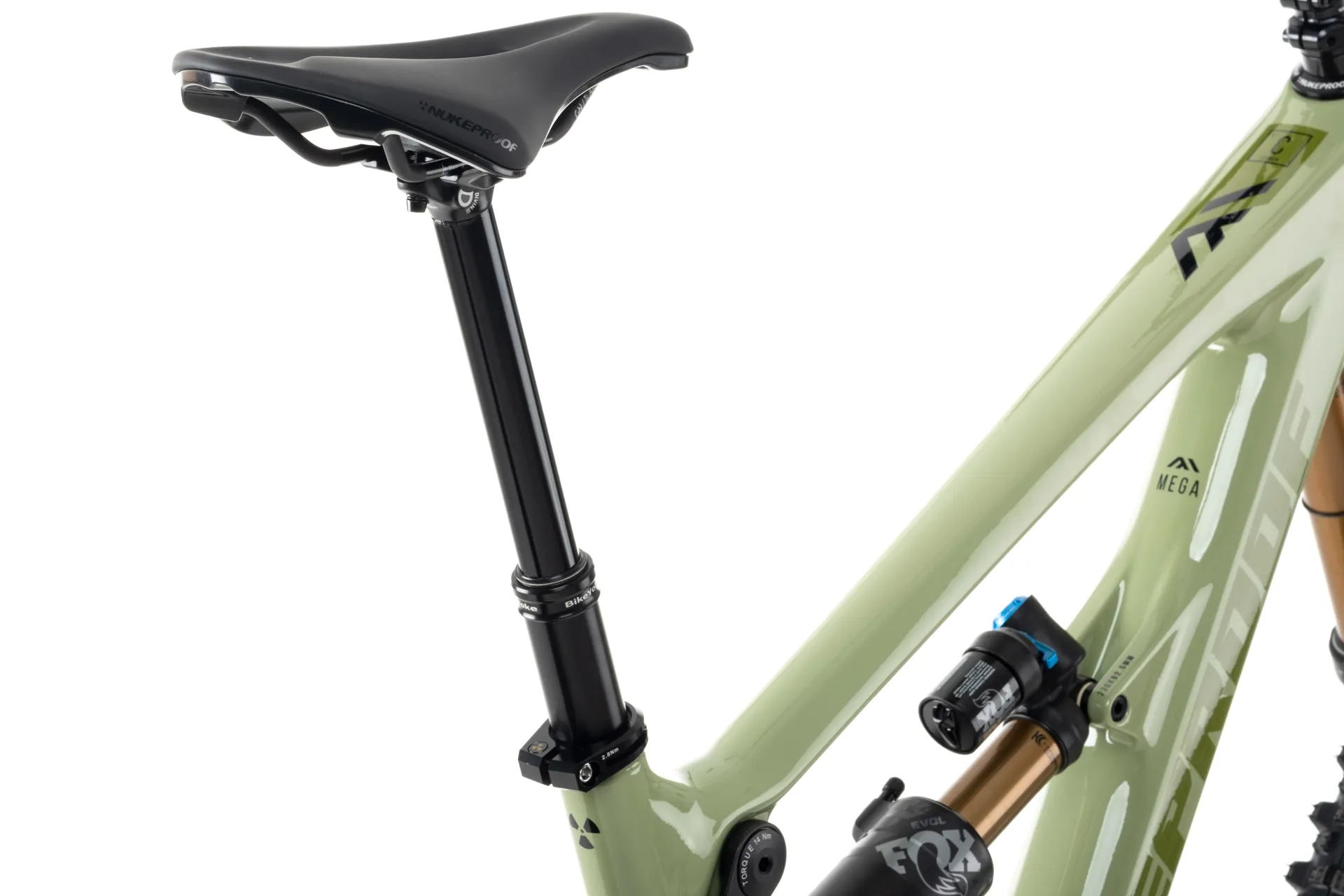

SEATPOST
Bikeyoke Divine Stealth w Shimano SL-MT500-IL Remote lever, S:125mm Drop; M/L:160mm drop; XL/XXL:185mm drop

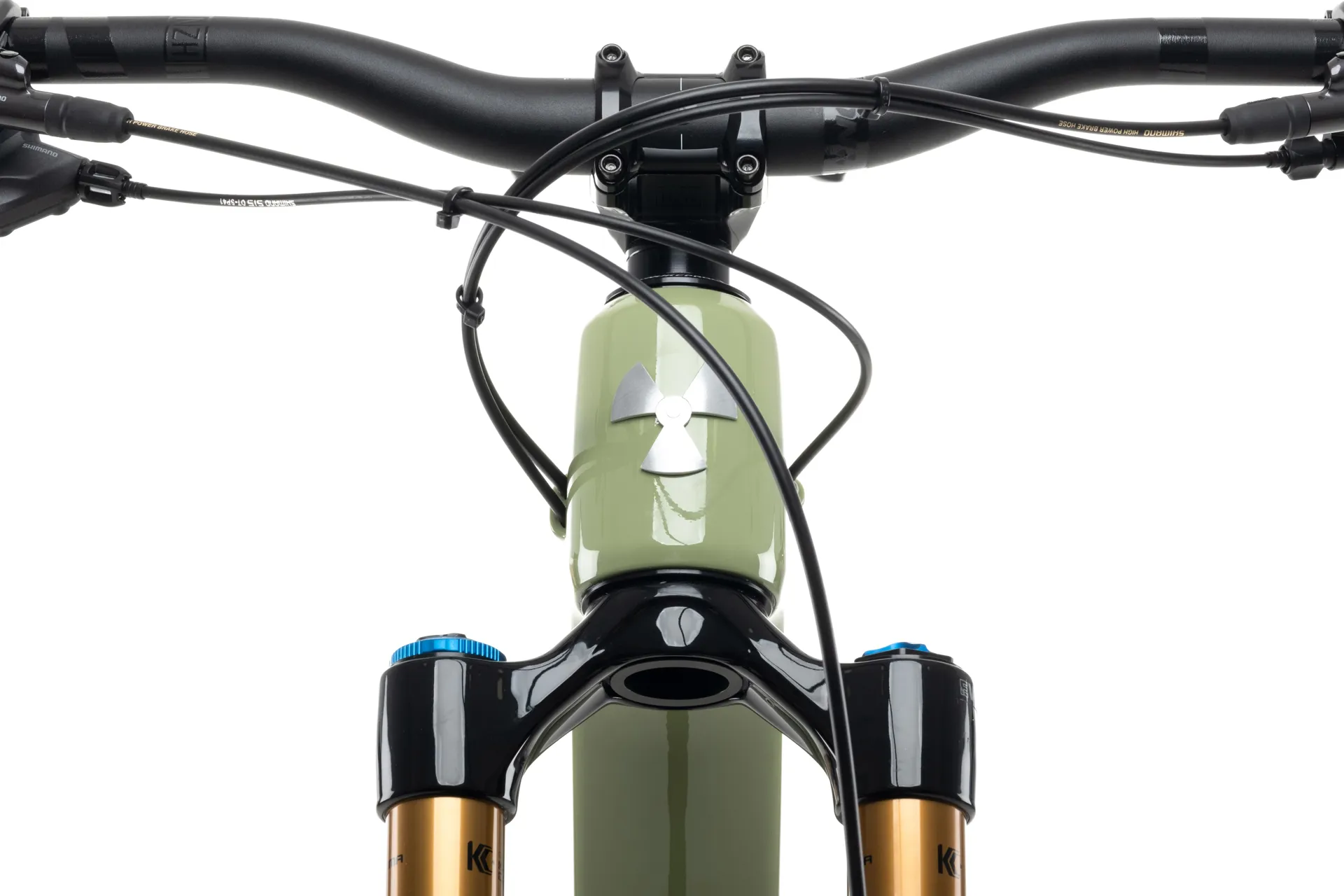

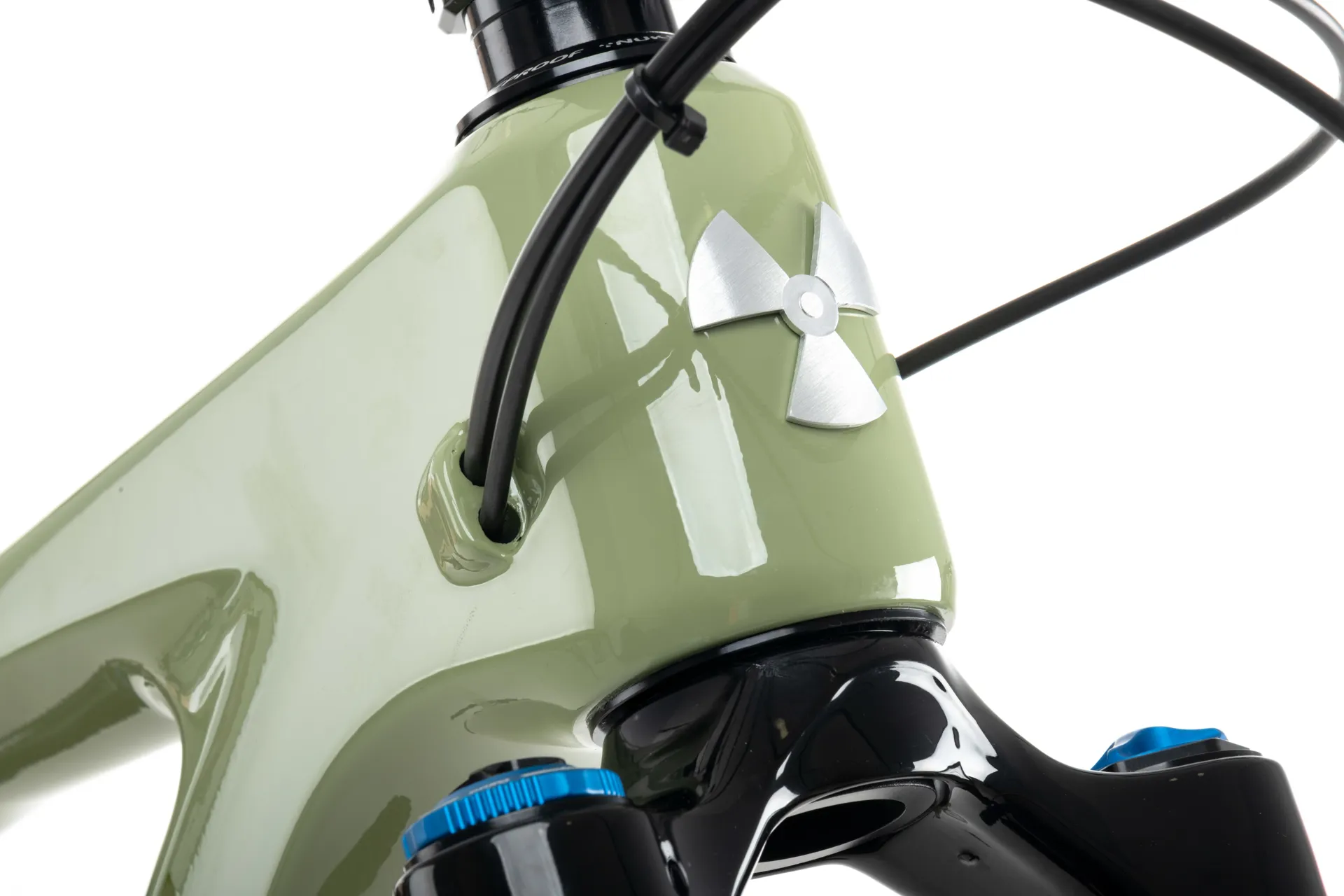

HEADSET
Nukeproof, 44-56 IITS
GRIPS
Nukeproof Sam Hill Signature
BEARINGS
Enduro Bearings
WEIGHT(SIZE MEDIUM)
14.8Kgs/32.6lbs (Tubeless)
